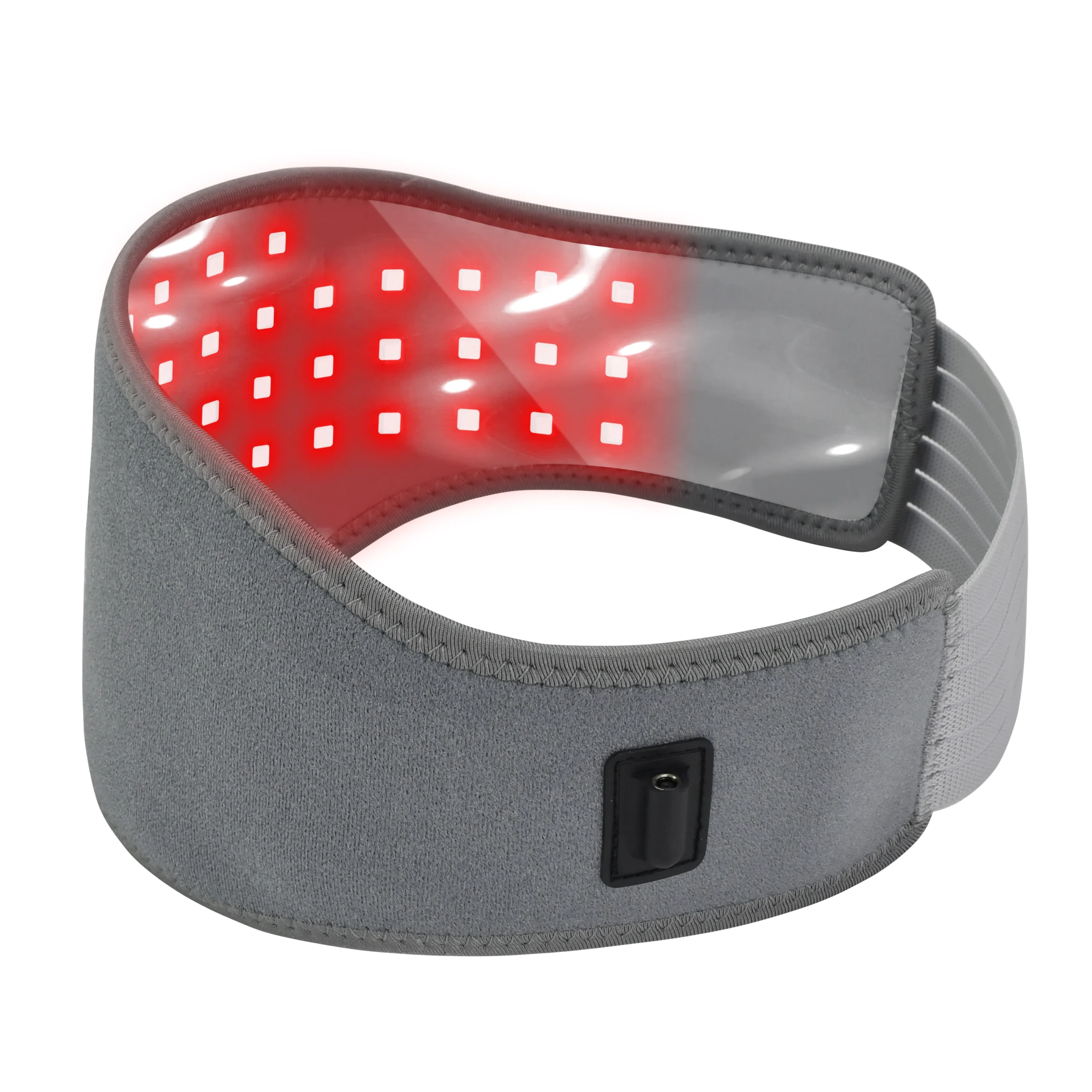

Compact High-Intensity Red Light Therapy Belt IRW-004
Product Description: IRW-004 Compact High-Intensity Therapy Belt
Key Features & Benefits
High Intensity (>150 mW/cm²)
Delivers class-leading irradiance for potent energy delivery in shorter session times, ideal for professional applications.
Compact & Portable (55cm)
Small footprint and lightweight (0.25kg) design make it easy to store, transport, and apply to specific body areas, perfect for mobile practitioners or clinics with limited space.
Full-Featured Controller
Offers comprehensive treatment control: adjustable timer (5-30 mins), 5 intensity levels (P1-P5, 3W-12W), pulse modes (10Hz/40Hz/Steady), and wavelength selection (Red only/NIR only/Both).
Proven Dual Wavelengths (660nm & 850nm)
Utilizes clinically studied Red and Near-Infrared light for simultaneous surface and deeper tissue benefits. Features 80 diodes, each with 1 Red and 2 NIR chips.
B2B Partnership Ready
As the manufacturer, we offer competitive wholesale pricing, reliable quality assurance (1-Year Warranty), and potential for customization.
Technical Specifications – IRW-004
| Parameter | Specification |
|---|---|
| Model No. | IRW-004 |
| Dimensions (LxW) | 55 x 15.55 cm (21.65″ x 6.12″) |
| LED QTY | 80 Diodes |
| Wavelengths | 660nm : 850nm (Chip Ratio 1:2) |
| Power Consumption (Adjustable P1-P5) | 3W / 5.2W / 7.5W / 9.6W / 12W (±5%) |
| Irradiance (@0in / 0cm) | >150 mW/cm² |
| Controller Features | Timer (5-30min), Intensity (P1-P5), Pulse (10/40Hz/Steady), Wavelength Select (R/NIR/Both) |
| Input Voltage | DC 12V (Adapter Input: AC 100-240V) |
| Beam Angle | 120° |
| Net Weight (Device only) | Approx. 0.25 kg (0.55 lbs) |
| Material | Fabric |
| Operating Temperature | -20°C to +40°C (-4°F to +104°F) |
| Rated Lifespan | >50,000 hours |
| Warranty | 1 Year (Manufacturer) |

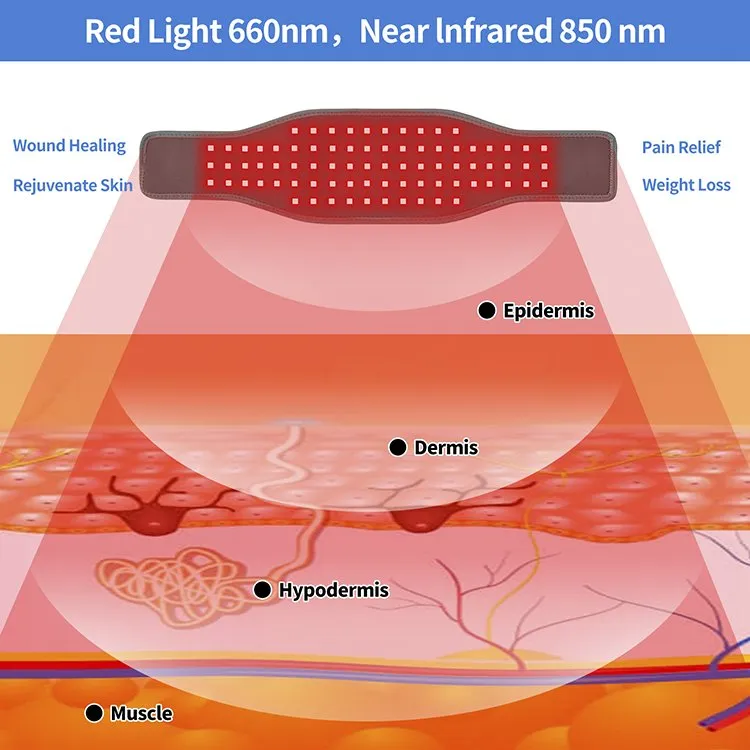

How Red & NIR Light Therapy Works
- 660nm Red Light: Primarily absorbed by skin layers, helping to promote collagen production, improve surface skin conditions, and aid wound healing.
- 850nm Near-Infrared (NIR) Light: Penetrates deeper into tissues, helping reduce inflammation, alleviate deeper muscle and joint discomfort, accelerate recovery, and enhance cellular energy (ATP).
By delivering both wavelengths at a high intensity of >150 mW/cm², the IRW-004 provides focused and efficient therapeutic benefits to the targeted area.
What’s Included with IRW-004
1x IRW-004 Red Light Therapy Belt (Device)
1x Controller with Display
1x USB Power Cable
1x AC Power Adapter (100-240V Input)
1x User Manual
Quality Assurance & Certifications (IRW-004)
Manufacturer’s Quality Commitment
The IRW-004 is manufactured in our ISO-certified facility under stringent quality control processes to ensure reliability and consistency. We back this model with:
1-Year Manufacturer’s Warranty
Your Questions Answered
We offer flexible minimum order quantities tailored to your business needs and region. Our wholesale pricing is tiered, meaning larger orders benefit from lower unit prices. The price includes the complete package: therapy belt device, controller with display, USB power cable, AC power adapter, and user manual. Please contact our sales team for a personalized quote.
The IRW-004 features 80 high-quality diodes delivering dual wavelengths of 660nm red light and 850nm near-infrared light with a chip ratio of 1:2. It offers adjustable power levels from 3W to 12W, pulse modes (10Hz/40Hz/steady), and treatment timers from 5 to 30 minutes. The device is lightweight (0.25 kg), compact (55 x 15.55 cm), and made of fabric material. It is manufactured under ISO-certified conditions and comes with a 1-year warranty.
The IRW-004 is ideal for targeted joint relief (knees, elbows, wrists, ankles), portable muscle recovery for athletes, and as an add-on therapy service in clinics or spas. It helps reduce pain, inflammation, and accelerate recovery. We provide comprehensive sales support including product training, technical specifications, marketing materials, product demos, and ongoing technical assistance to help you successfully market and sell the device.
