High-Density Red Light Therapy Wrap IRW-003
Product Description: IRW-003 High-Density Red Light Therapy Wrap
Key Features & Benefits

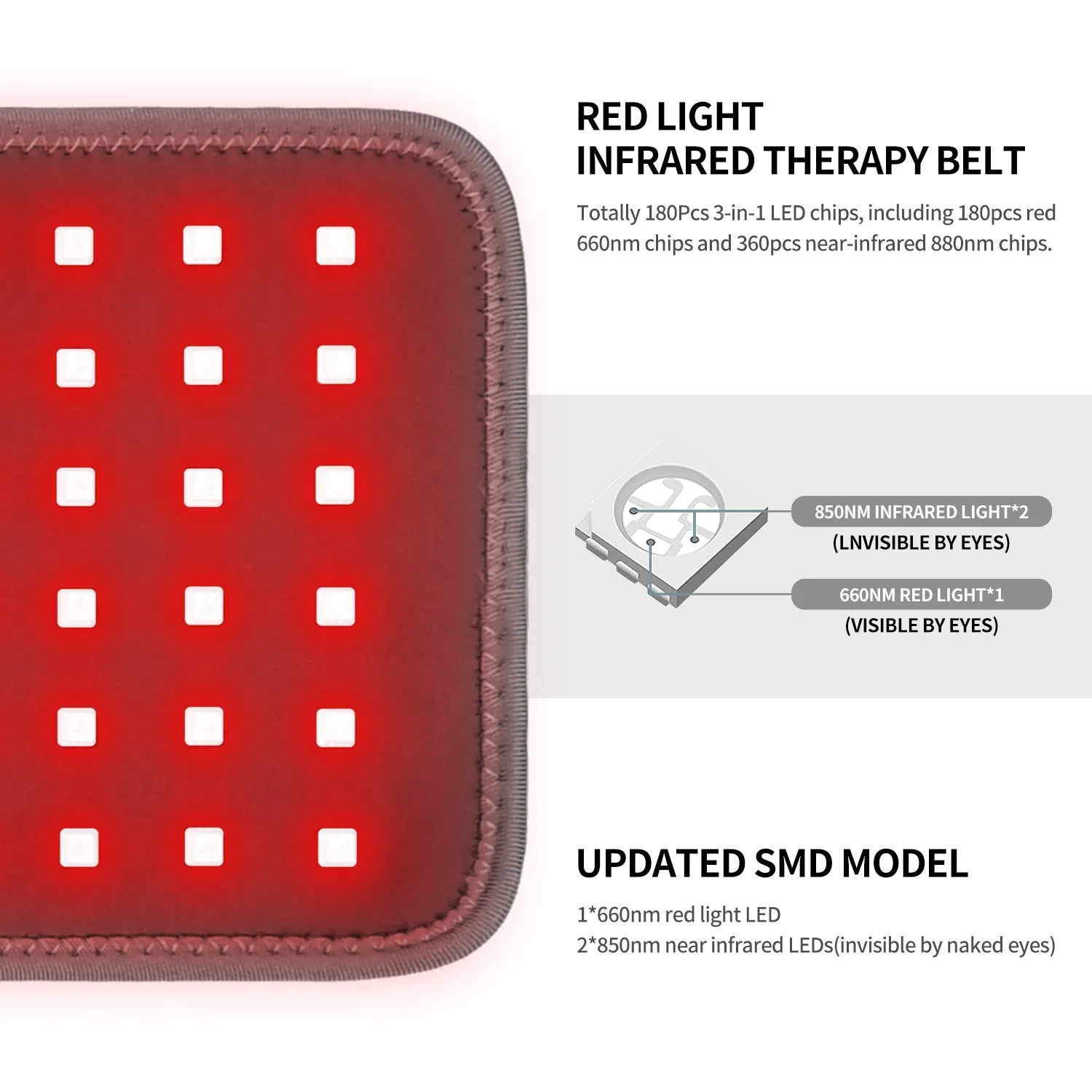

High-Density LED Array (180 Diodes / 540 Chips)
Features a dense arrangement of 180 high-power diodes (each with 1 Red & 2 NIR chips) for more concentrated energy coverage, significantly enhancing treatment efficiency per session and saving time for your business.
Professional-Grade Irradiance (>130 mW/cm²)
Delivers potent light energy output, ensuring effective therapeutic thresholds are met for reliable, noticeable results for your clients, enhancing your service value.
Versatile 80cm Size
The 80x16cm (approx. 31.5″x6.3″) dimension is ideal for covering larger areas like the back, abdomen, or legs, or treating multiple smaller areas simultaneously, offering broad application versatility for diverse client needs.
Full-Featured Controller
Offers comprehensive treatment parameter adjustments: Timer (5-30 mins), 5 Intensity Levels (P1-P5, 5.5W-25W), Pulse Modes (10Hz/40Hz/Steady), and Wavelength Selection (Red only/NIR only/Both), enabling tailored protocols by professionals.
Proven Dual Wavelengths (660nm & 850nm)
Combines clinically studied Red light (for surface benefits) and Near-Infrared light (for deeper penetration) to offer comprehensive photobiomodulation advantages.
B2B Partnership Ready
As the source manufacturer, we provide competitive wholesale pricing, flexible OEM/ODM customization options, and reliable 1-Year quality assurance to support your business growth.
Technical Specifications – IRW-003
| Parameter | Specification |
|---|---|
| Model No. | IRW-003 |
| Dimensions (LxW) | 80 x 16 cm (approx. 31.5″ x 6.3″) |
| LED QTY / Type | 180 Diodes (SMD 5050, 3 chips in 1: 1x660nm + 2x850nm per diode) |
| Wavelengths | 660nm : 850nm (Chip Ratio 1:2) |
| Power Consumption (Adjustable P1-P5) | 5.5W / 10.5W / 15W / 20W / 25W (±5%) |
| Irradiance (@0in / 0cm) | >130 mW/cm² |
| Controller Features | Timer (5-30min), Intensity (P1-P5), Pulse (10/40Hz/Steady), Wavelength Select (R/NIR/Both) |
| Input Voltage | DC 12V (Adapter Input: AC 100-240V) / DC 5V (via USB for Power Bank) |
| Beam Angle | 120° |
| Net Weight (Device only) | Approx. 0.40 kg (0.88 lbs) |
| Housing Material | Fabric |
| Operating Temperature | -20°C to +40°C (-4°F to +104°F) |
| Rated Lifespan | >50,000 hours |
| Warranty | 1 Year (Manufacturer) |
How Red & NIR Light Therapy Works
- 660nm Red Light: Primarily absorbed by skin layers, helping to promote collagen production, improve surface skin conditions, reduce fine lines and wrinkles, and aid wound healing.
- 850nm Near-Infrared (NIR) Light: Penetrates deeper into tissues (muscles, joints, bones), helping to reduce inflammation, alleviate deeper discomfort, accelerate the recovery process, and enhance cellular energy (ATP) production.
The combination of the IRW-003’s high-density array of 180 LEDs and its high irradiance (>130 mW/cm²) ensures efficient and concentrated delivery of these beneficial wavelengths to the target area, maximizing therapeutic outcomes.
What’s Included with IRW-003
1x IRW-003 High-Density Red Light Therapy Wrap (Device)
1x Controller with Display
1x USB Power Cable (for Power Bank use)
1x AC Power Adapter (100-240V Input, DC 12V Output)
1x User Manual
Quality Assurance & Certifications (IRW-003)
Manufacturer’s Quality Commitment
The IRW-003 Red Light Therapy Wrap is manufactured in our ISO-certified facility under stringent quality control processes to ensure reliability, consistent performance, and durability for commercial use.
1-Year Manufacturer’s Warranty
Your Questions Answered
Yes, we offer full OEM and ODM support for the IRW-003 red light therapy wrap. Customization options include private labeling, packaging design, controller interface settings, wavelength configuration, and more. Our experienced manufacturing team supports low MOQ options for new brands and bulk pricing for established distributors.
The IRW-003 is designed to support a wide range of applications including muscle and joint pain relief, inflammation reduction, muscle recovery, improved circulation, and skin health. It is especially effective for back, abdomen, leg, or shoulder areas due to its extended 80cm wrap size and dual-wavelength (660nm + 850nm) design.
Yes. While the IRW-003 is optimized for professional settings such as physiotherapy clinics, spas, and rehabilitation centers, its full-featured controller (intensity, pulse, timer, wavelength) and plug-and-play design make it user-friendly and safe for at-home users who want reliable, clinical-grade results.
