IRP010-08T Professional Red Light Therapy Panel (600W)
Product Description: IRP010-08T
Engineered for exceptional results, the IRP010-08T features 1280 high-intensity LEDs emitting optimized Red (660nm) and Near-Infrared (850nm) light. Its potent irradiance, exceeding >150 mW/cm² at 6 inches and >200 mW/cm² at 3 inches, ensures deep tissue penetration for faster recovery, significant pain relief, and enhanced skin health. This powerful output (600W LED class, 360W actual consumption) is complemented by a comprehensive smart control system. Effortlessly manage sessions via the intuitive Touch Panel, Remote Controller, Voice Commands, or the versatile Smart App. Precisely adjust treatment time, intensity (40-100%), wavelength modes (Red/NIR/Both), and pulse frequencies (up to 99Hz) to create customized protocols or use convenient pre-set smart modes. This combination of high-efficacy light delivery and advanced control makes the IRP010-08T the ultimate professional 600w red light therapy panel.
Key Features & Benefits
High-Power 600W LED Class:
High Irradiance for Deep Penetration (>150mW/cm² @ 6″):
Advanced Smart Control Suite (Touch, Remote, Voice, App):
Deep Customization via Tuya App:
Multiple Therapy Modes (Normal, Pulse, Breathing):
Offer varied treatment experiences beyond continuous light, including pulsing (1Hz: 100%-40% brightness) and breathing (0.5Hz: 100%-40% brightness) modes accessible via remote/panel.
Targeted Light Delivery (30° Beam Angle):
30-degree lens beam angle focuses the light from the 1280 LEDs for efficient and targeted treatment applications.
Reliable Operation & Longevity (>30,000 Hours):
Low EMF & Modular Potential:
Engineered for low EMF output. Potential to link multiple panels for larger arrays .
Technical Specifications – IRP010-08T Red Light Therapy Panel
| Parameter | Specification |
|---|---|
| Model No. | IRP010-08T |
| LED Power Class | 600W |
| Power Consumption | 360W (±5%) |
| LED Quantity | 1280 pcs |
| Input Voltage | AC 100-240V, 50/60Hz |
| Irradiance (@6in / 15cm) | >150 mW/cm² |
| Dimensions (LxWxH) |
24.61″ x 8.43″ x 1.89″
|
| Cooling Fans | 4 fans |
| Beam Angle | 30° |
| Rated Lifespan | >30,000 hours |
| Warranty | 1 Year |
How Red & NIR Light Therapy Works
- 660nm Red Light: Primarily absorbed by the skin, promoting collagen production, improving skin tone, aiding in surface wound healing, and reducing signs of aging.
- 850nm Near-Infrared (NIR) Light: Penetrates deeper into tissues, helping to reduce inflammation, alleviate muscle and joint pain, accelerate muscle recovery, and enhance cellular energy production (ATP).
By delivering both wavelengths with increased power (6000W), the IRP010-08T offers efficient and comprehensive benefits for various body applications.
What’s Included with IRP010-H06T Red Light Therapy Panel
Red Light Therapy Panel (IRP010-08T Unit)
Power Supply (for 04T/H06T/08T models)
Remote Controller
Stainless Steel Safety Chain (x2)
Rope Ratchet / Lanyard (x2)
Protective Goggles
User Manual

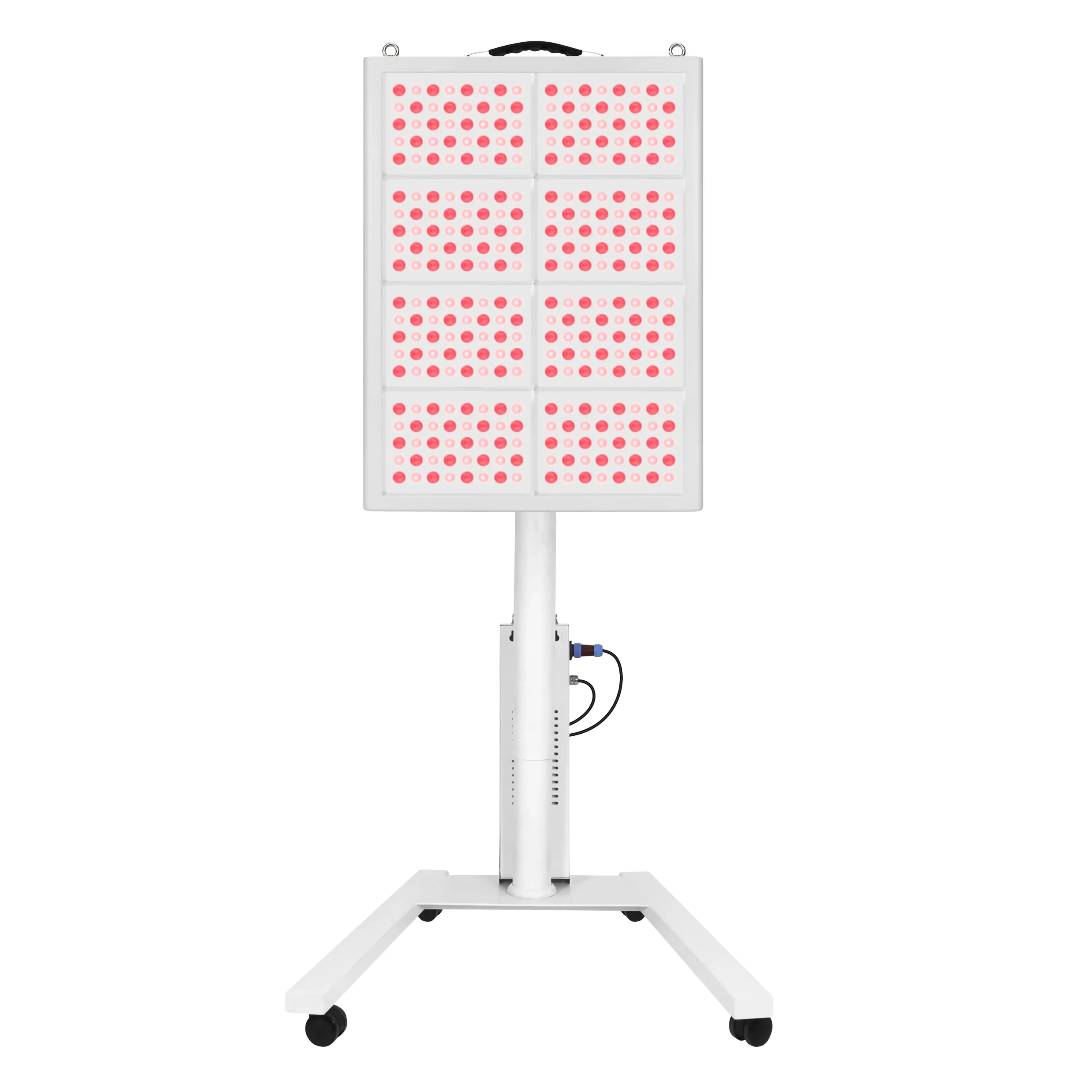

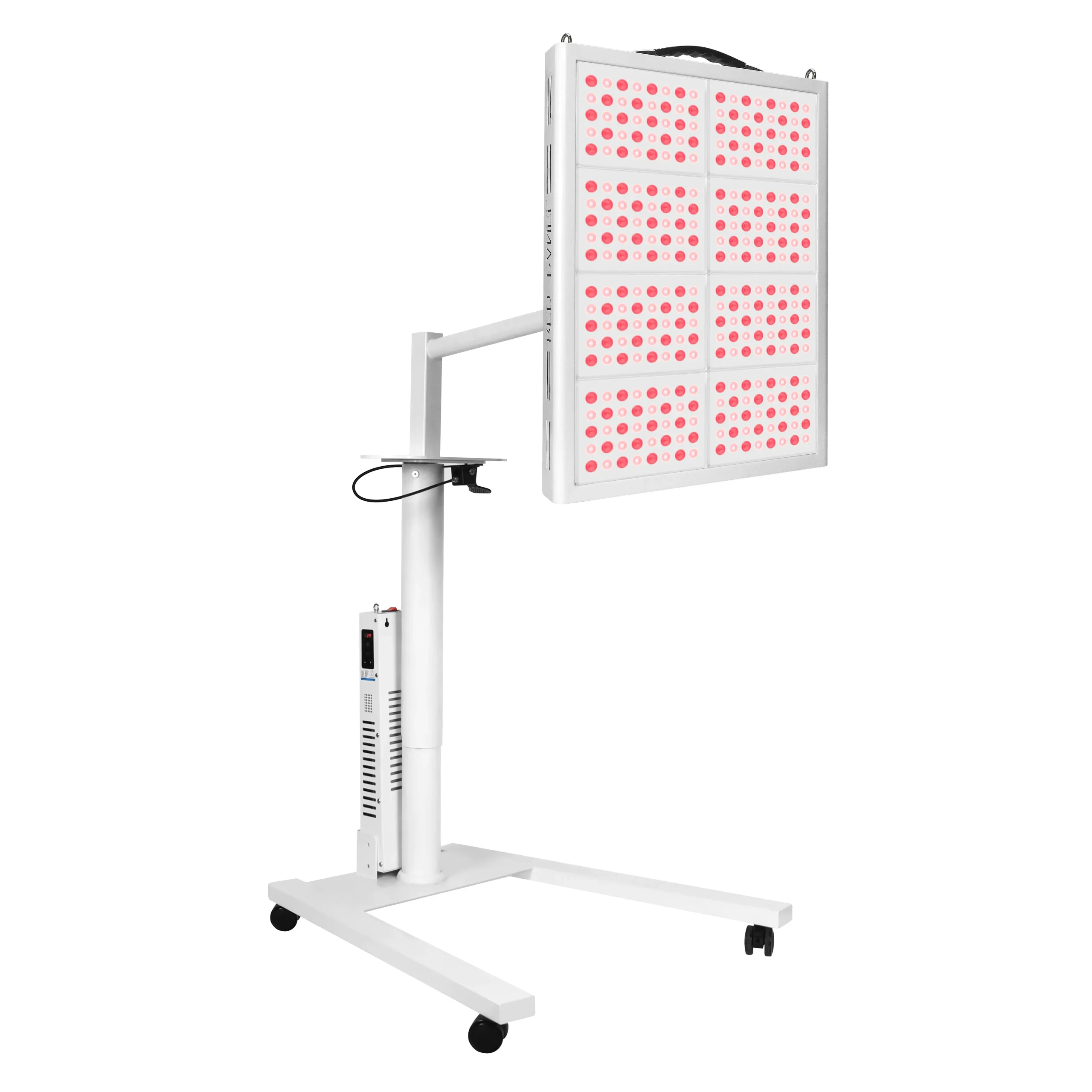

Compatible Stand
This model is compatible with the Floor-standing Rolling Gas Pressure Lifting Bracket (Sold Separately).
*Note: Specific accessories may vary slightly by region or batch. Please refer to the actual product received.
Quality Assurance & Certifications (IRP010-08T)
Our Commitment to Quality
At BoYuanYang, we stand behind the quality and performance of our professional red light therapy solutions. The YL-IRP010-08T is built with high-quality components and rigorous manufacturing standards to ensure reliable operation and lasting value for your business.
1 Year Manufacturer’s Warranty
We proudly back the IRP010-08T with a comprehensive 1-year warranty against manufacturing defects. Please refer to our warranty policy or contact us for full details.
Your Questions Answered
Yes. The panel supports simultaneous emission of 660nm red light and 850nm near-infrared light. You can also choose to use only red or only NIR modes depending on the treatment need.
No, it’s very easy to use. The panel offers four control methods: touchscreen, remote control, voice commands, and the Tuya Smart App. This allows for full customization of intensity, time, pulse, and treatment modes.
Yes, we offer OEM and ODM customization for bulk orders, including branding, control software, LED ratios, and accessories. Please contact our sales team to discuss your specific needs.
